Silimanite Brick

Al2O3:≥65%

SiO2: ≤32%

Fe2O3: ≤0.5%

B.D. : ≥2.5g/cm3

A.P. : ≤18%

C.C.S. :≥80MPa

R.U.L.: ≥1650°C

Make an inquiry

Description

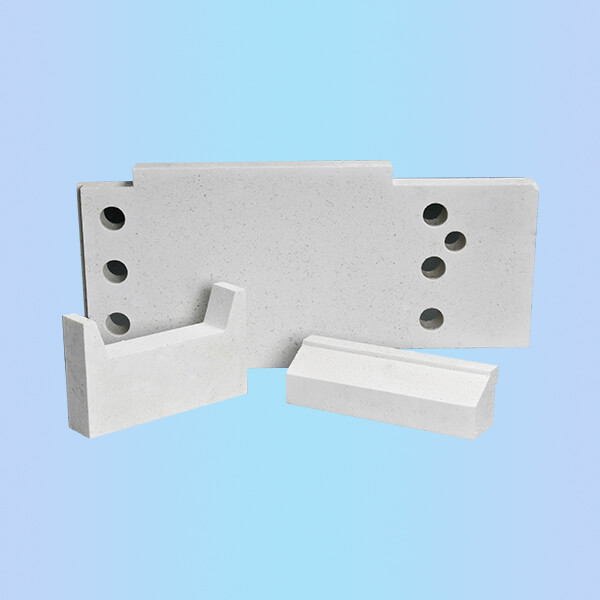

Silimanite brick:

Sillimanite brick is a high-grade refractory material, which has the characteristics of low thermal expansion rate, good resistance to metallurgical slag and to corrosion of various glass liquids, and high temperature wear resistance. Sillimanite refractory bricks have the Refractoriness of 1770 ~ 1830 ℃, load softening starting point 1500 ~ 1650 ℃. Sillimanite bricks are widely used in feeder channels, feeder covers, burners, melting bottom paving of glass furnaces and other applications.

Since sillimanite refractories have good high-temperature thermal stability, are resistant to corrosion of glass liquid, and have little pollution to glass liquid, they are mostly suitable for equipment such as forehearths, feeders, and pipe-drawing machines in the glass industry, which can significantly improve productivity. Sillimanite products include channel bricks, flow troughs, rotating tubes, spouts, bowls, mixing slurry, punches, barrels, fire-stop slag bricks, gate bricks, front arch bricks, rear arch bricks, bowl covers, and various varieties and specifications such as bricks, burning nozzle bricks, beams, and cover bricks

As a professional sillimanite bricks manufacturer, we have exported sillimanite refractory products to more than 30 countries. Please kindly read the following more information and make Inquiry.

Scope of application:

l Sillimanite bricks are widely used in feeder channels, feeder covers, burners, melting bottom paving of glass furnaces

Advantage:

l Low thermal expansion rate

l Strong resistance to corrosion by metallurgical slag and various glass liquids

l High temperature wear resistance

l High temperature thermal stability, anti-erosion of glass liquid, little pollution to glass liquid

l Long use lifetime

Technical Data:

Item	Sillimanite brick S-65	Sillimanite brick S-60
Item	LS-65	LS-60
Al2O3 %	≥65	≥60
SiO2 %	≤32	≤37
Fe2O3 %	≤0.5	≤1
B.D. g/cm3	≥2.5	≥2.3
A.P. %	≤18	≤19
C.C.S. MPa	≥80	≥80
R.U.L. °C	≥1650	≥1600

We can also produce the sillimanite bricks according to the customer's datasheet requirement
